Certifier for singlemode and multimode cabling

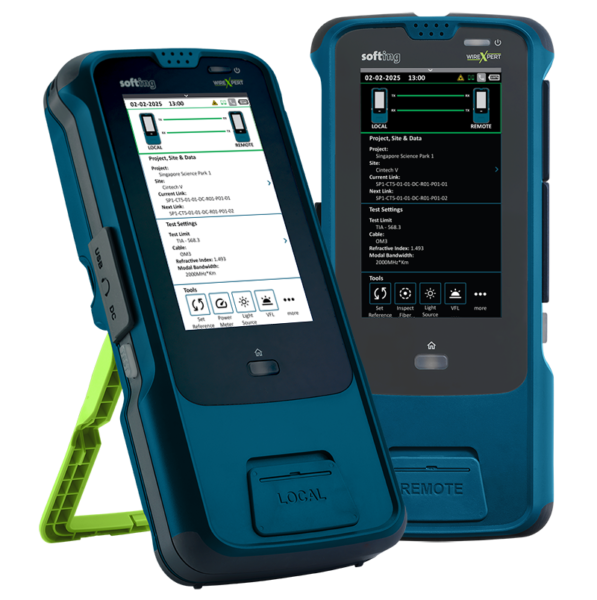

- WireXpert MP mainframe with both multimode 850/1300 nm and singlemode 1310/1550 nm fiber modules
- Broadband power meter from 800 to 1650 nm EF compliance multimode measurement out of the box ensuring measurement accuracies to highest industry standards
- Exchangeable adapters for most common connector interfaces included (LC, SC, FC)
- Two integrated red light sources with 1.25 and 2.5 mm ferrules
- Guided user experience for fiber testing
- Download Product Documents (PDF)
Tier 1 Fiber Certification for both Multimode and Singlemode Cabling in one Set
All-in-one fiber only encircled flux compliant tier 1 certifier for both multimode (850/1300 nm) and singlemode (1310/1550 nm) fiberoptic cabling. For multimode, EF compliance out of the box ensures measurement accuracies to highest industry standards. The included broadband power meter ranges from from 800 to 1650 nm.
The WireXpert MP range is packed with features that help saving time on the job. It is important to not only save a couple seconds per Autotest, but saving minutes completing all necessary steps for every link tested. If links fail, WireXpert MP translates complex RF measurements into easy-to-understand test results, helping users to pinpoint and repair issues. The devices are ergonomically optimized with 2 Autotest buttons for left- and right-handed use. Flip Tags allow the user to change the identity of the device of being either a local or remote unit making the device more flexible for various applications.
Areas of application |
- Premise cable testing
- Office cable testing
- Industrial cable testing
- Special cable testing, e.g. trains, ships, wind mills
- Fiber harness testing
- Datacenter cable testing
|
Special characteristics |
- WireXpert MP mainframe with quad modules containing both multimode 850/1300 nm and singlemode 1310/1550 nm fiber light sources
- Broadband power meter from 800 to 1650 nm
- Encircled Flux compliant 850 nm multimode light source to IEC 14763-3 removes the need for expensive mode conditioning measurement cords
- Exchangeable adaptors for most common connector interfaces included. (LC, SC)
- Two integrated red light sources with 1.25 and 2.5 mm ferrules remove the need to use an adaptor for 1.25 ferrules
- Guided user experience for fiber testing
|
Your benefit |
- Cost effective fiber only tier 1 certifier for multimode and singlemode fiberoptic cabling
- Reliable measurement accuracy with EF compliance to the highest industry standards
- Flexible connection options with interchangeable adapters for LC, SC, FC, and integrated red light sources for 1.25 mm ferrules
- Guided user experience for fiber testing.
- Barcode scanner function for quick assignment of the cable ID
- Camera for documentation & QR code scanning
- Modular platform that can be expanded when needed
- Economical device for all common fiber Tier 1 measurements
- Expandable with copper certification modules up to CAT8 and beyond.
- Easy handling due ergonomic housing and light weight
- Sensitive touch screen
- Dual Control System PLUS TM for fast workflow
|
Accuracies:IEC 14763-3, IEC 61280-4-1, IEC 61280-4-2 |
Standard: ISO 11801, EN50173, TIA 568.3, JIS C5150, GB 50312 |
Input and output connectors: SC/PC, LC/PC, optional FC/PC, ST/PC |
LIGHT SOURCES |
Light Source: LED: 850 ±20 nm EF compliant, 1300 ±20 nm Fabry-Perot: 1310 ±20 nm 1550 ±20 nm |
Output TX power (nominal) at 23°C: MM: ≥-24 dBm, SM: ≥+4 dBm |
Output TX power stability: MM: ±0.05 dB over 8 hours, ±0.03 dB over 15 minutes SM: ±0.1 dB over 8 hours, ±0.08 dB over 15 minutes |
POWER METER |
Power Meter: 800 – 1650 nm, calibrated on 850, 1300, 1310, 1550 nm |
Power Measurement Range: 850 nm: 5dB m to -65 dBm, Others: 5 dBm to -70 dBm |
Power Measurement Uncertainty: ‹ ±5 % ±32 pW over 8 hours |
Measurement Linearity: ‹ ±0.1 dB over 8 hours |
Max Length: MM: 12 km, SM: 130 km |
Length measurement accuracy: ±1.5 m plus ±1 % of link length |
Units: dB, dBm, mW |
*Full specifications see datasheet
Scope of delivery:
- 2 x Mainframe units
- 2 x Quad multimode and singlemode modules with SC and LC PC adaptors
- 2 x Headsets
- 1 Set Calibration and conformity certificates
- 1 Tri-Mode softcase
- 2 x Charging adapters
- 1 x Quick Start Guide
Note: Please order test reference cords separately
